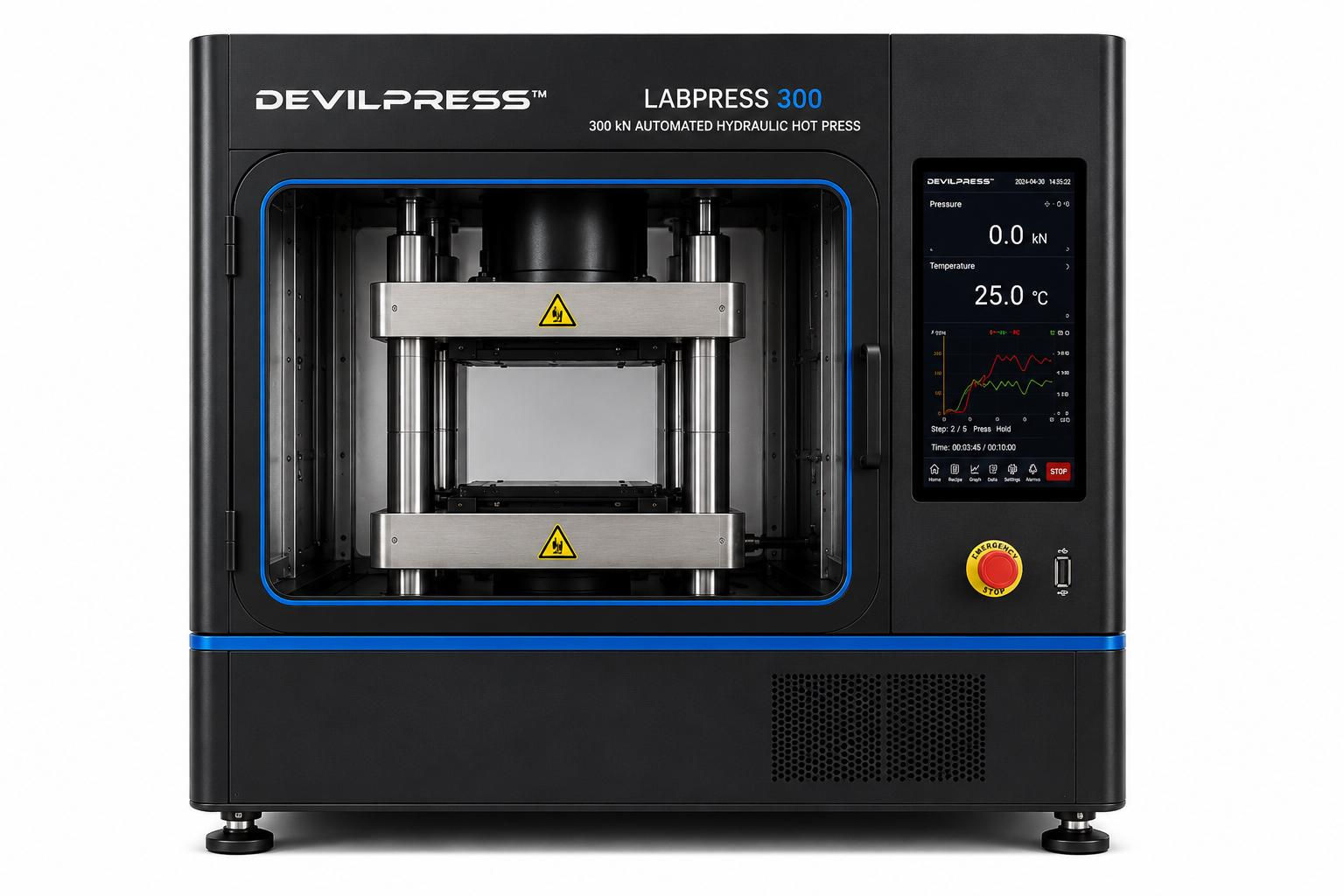

DEVIL PRESS LAB PRESS 300 32TON COMMERCIAL HEAT PRESS
32 Ton fully Automated Lab Heat Press
Precision Hydraulic Pressing for Advanced Materials Research and Development
The 32 Ton Automated Laboratory Hydraulic Hot Press is a high-performance laboratory press designed for precision processing of polymers, composites, laminates, and advanced materials. Combining up to 300 kN of hydraulic pressing force with programmable temperature, pressure, heating, cooling, and degassing control, this system delivers the accuracy and repeatability required for modern research, development, and quality control environments.
Designed for universities, research institutes, material testing laboratories, and industrial R&D facilities, the press provides fully automated operation through an intuitive touchscreen control system. Users can create, store, and recall custom processing recipes, enabling consistent results across development, testing, and small-scale production applications.
A rigid precision-engineered frame, heated platens capable of reaching temperatures up to 300°C, integrated water-cooling channels, and advanced process control software make this press suitable for demanding applications where accurate temperature management and force control are critical.
Key Features
Up to 300 kN (32 Ton) hydraulic pressing force
Maximum platen temperature of 300°C
Fully programmable heating, cooling, and pressure cycles
Automated degassing and venting sequences
Precision-machined heated platens
Integrated water-cooling system with air purge functionality
PLC-controlled operation with industrial touchscreen HMI
Multi-stage recipe creation and storage
Real-time pressure and temperature monitoring
Data logging and USB export capability
Full safety enclosure with interlocked access door
Compact bench-top industrial design
Typical Applications
The system is suitable for a wide range of laboratory and development applications, including:
| Application | Description |
|---|---|
| Composite Moulding | Preparation and curing of composite materials and laminates |
| Polymer Processing | Compression moulding of thermoplastics and thermosets |
| Material Development | Research and development of new materials and formulations |
| Sample Preparation | Production of test specimens for laboratory analysis |
| Quality Control | Verification and validation of production materials |
| Academic Research | University and research laboratory investigations |
| Product Development | Prototype manufacturing and process optimisation |
Automation & Process Control
The integrated control system allows complete management of pressing cycles through an easy-to-use touchscreen interface.
Users can configure:
Temperature ramp profiles
Pressure ramp and hold stages
Multi-stage pressing sequences
Automated degassing cycles
Controlled cooling programs
Recipe storage and recall
Process monitoring and data logging
The system provides repeatable process control, reducing operator intervention while improving consistency between production runs.
Heating & Cooling System
The precision platen system incorporates embedded heating elements and integrated water-cooling channels to provide accurate thermal management throughout the processing cycle.
Thermal Features
Maximum temperature: 300°C
PID temperature control
Uniform platen heating
Integrated water-cooling channels
Programmable cooling cycles
Compressed air purge system
Thermal insulation for improved efficiency
These features enable controlled heating and cooling rates essential for advanced composite and polymer processing applications.
Hydraulic System
The press utilises a heavy-duty hydraulic system designed for accurate force application and reliable long-term operation.
Hydraulic Features
Double-acting hydraulic cylinder
Maximum force: 300 kN (32 Ton)
Precision pressure control
Closed-loop pressure monitoring
Hydraulic safety protection
Industrial-grade hydraulic power unit
The system delivers smooth and repeatable force control throughout the pressing cycle.
Safety Features
Operator safety is integrated into every aspect of the machine design.
Included Safety Systems
Fully enclosed protective cabinet
Interlocked safety door
Emergency stop system
Over-temperature protection
Hydraulic pressure relief protection
Safety monitoring circuitry
Insulated hot-zone protection
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Pressing Force | 300 kN (32 Ton) |
| Cylinder Type | Double-Acting Hydraulic |
| Maximum Temperature | 300°C |
| Temperature Control | PID Controlled |
| Heating System | Embedded Electric Heaters |
| Cooling System | Integrated Water Cooling |
| Process Control | PLC + Touchscreen HMI |
| Recipe Storage | Multiple User Recipes |
| Data Export | USB |
| Safety Features | Interlocks, E-Stop, Over-Temperature Protection |
| Power Supply | 220V Single Phase* |
| Machine Type | Automated Laboratory Hydraulic Hot Press |
*Final power requirements may vary depending on heating configuration and customer specifications.
Designed for Precision. Built for Reliability.
The 32 Ton Automated Laboratory Hydraulic Hot Press delivers the performance, accuracy, and process control required for advanced materials research and development. Combining high-force hydraulic pressing, precision temperature management, and fully automated operation, it provides a versatile solution for laboratories and industrial facilities seeking repeatable, high-quality results.
